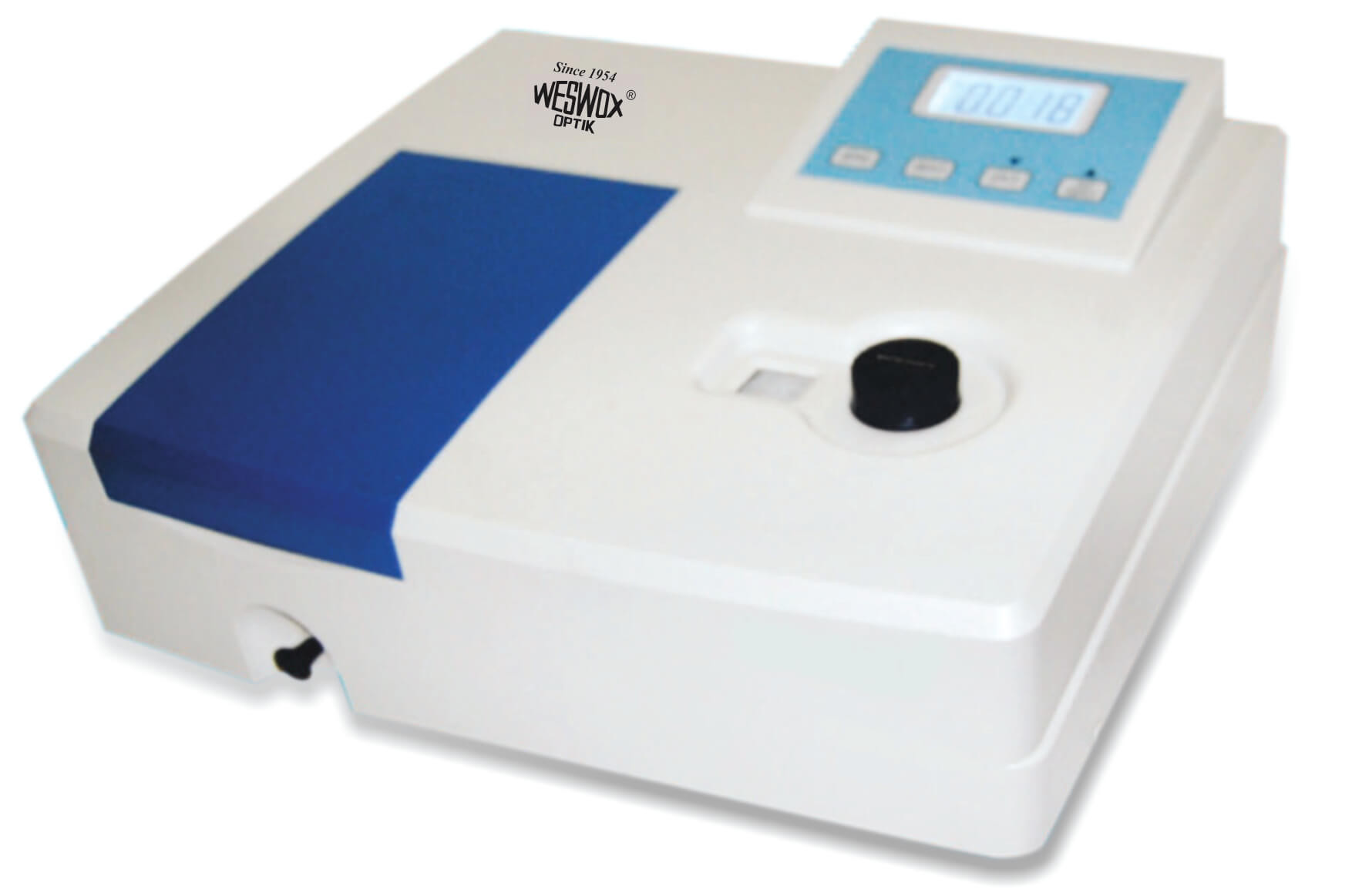

Visible Spectrophotometer

Enquire Now
Model No. – WSPECTRO-1502 Make – WESWOX


  1. The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, goog monochromaticity and low stray light.
  2. A sample compartment for 0.5cm – 10cm cell.
  3. Computer control system, precise automatic T/A changeover.
  4. Automatic zero and full scale adjustment.
  5. Direct concentration read-out and concentration factor setting function.
  6. Equipped with RS232 Port. Data can be sent to PC special software.



Wavelength Range 325-1000nm
Wavelength Accuracy <2nm
Wavelength Repeatability <1nm
Transmittance Accuracy +0.5%
Transmittance Repeatability <0.2%
Spectrum Bandwidth 2nm
Stray Light <0.5%T(at 360nm, NaNO2)
Light Current Drift 0.5%/3 min
Dark Current Drift 0.2%/3min
Cell Holder 10nm
Power AC (220V/50Hz)
Dimension (WxDxH) 56x48x29cms
Net Weight 11.5kg
Grossing Weight 13.5 kg



Main Instrument 1 no.
Operating Manual 1 no.
Glass Cell 10mm 4 no.
Dust Cover 1 no.
Software CD
RS 232 Cable 1 no.
Power Cable 1 no.
Fuse (3A) 2 no.



  1. 5/10/20/50mm Glass Cell
  2. 50 mm Cell Holder
  3. 100 mm Cell holder
  4. Tungsten-halogen lamp (12V 30W)
