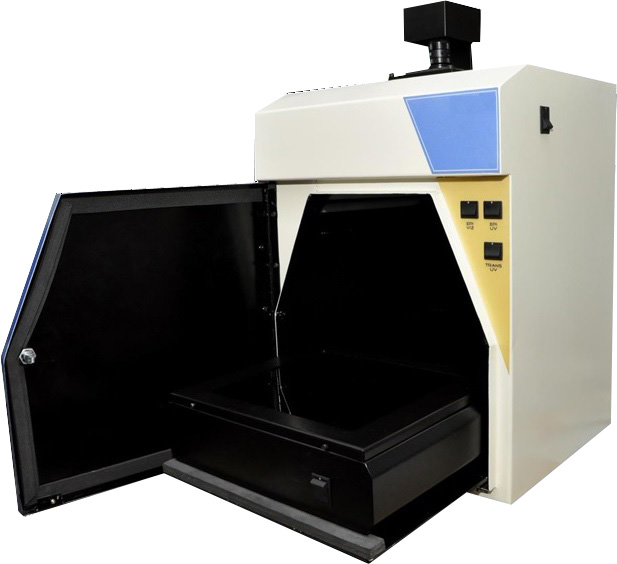

ELECTROPHORESIS SET UP

Features:-

• Small footprint
• Spacious Dark Room
• High Resolution Camera
• White illumination, Trans UV, EPI UV
• Low cost

Technical Specification:-

• UV Transilluminator : 312NM
• Maximum Viewing Area : 21 x 26 CM
• TRANS- UV
• EPI- UV
• EPI – VIS
• Horizontal apparatus length 18-20cm, Breadth 5-7.5cm, 40-60 samples, multichannel pipette compatible combs and gel caster.
• Camera : Digital
• Image Resolution (Pixels) : 16MP
• Vertical gel apparatus: 10 – 12 cm (Length) x 8 – 10 (Breadth) x8- 12cm(Height), 5-10 samples, glass plate (10 x10 cm), comb capacity of 35μl – 50μland gel caster.
• Lens : Manual
• 1D Gel Analysis Software: Basic Import common image types up to 48bit, 16 Bit Grey levels Image pre-processing.
• Manual lane detection
• Manual and Automatic band detection
• Manual correction for lanes and bands
• 6 methods for background noise reduction
• Rf correction to correct distorted gels
• MW Calibration using MW standards, Standard editor Quantification for bands and lanes
• Gel imaging system with UV trans-illuminator (white light and UVlight), built in with 5MP – 10MP camera; 1D Gel analysis Soft-ware. Power pack(output 10 – 300 V) with output terminals, timer, 3 digit LED display and start/stop function.
