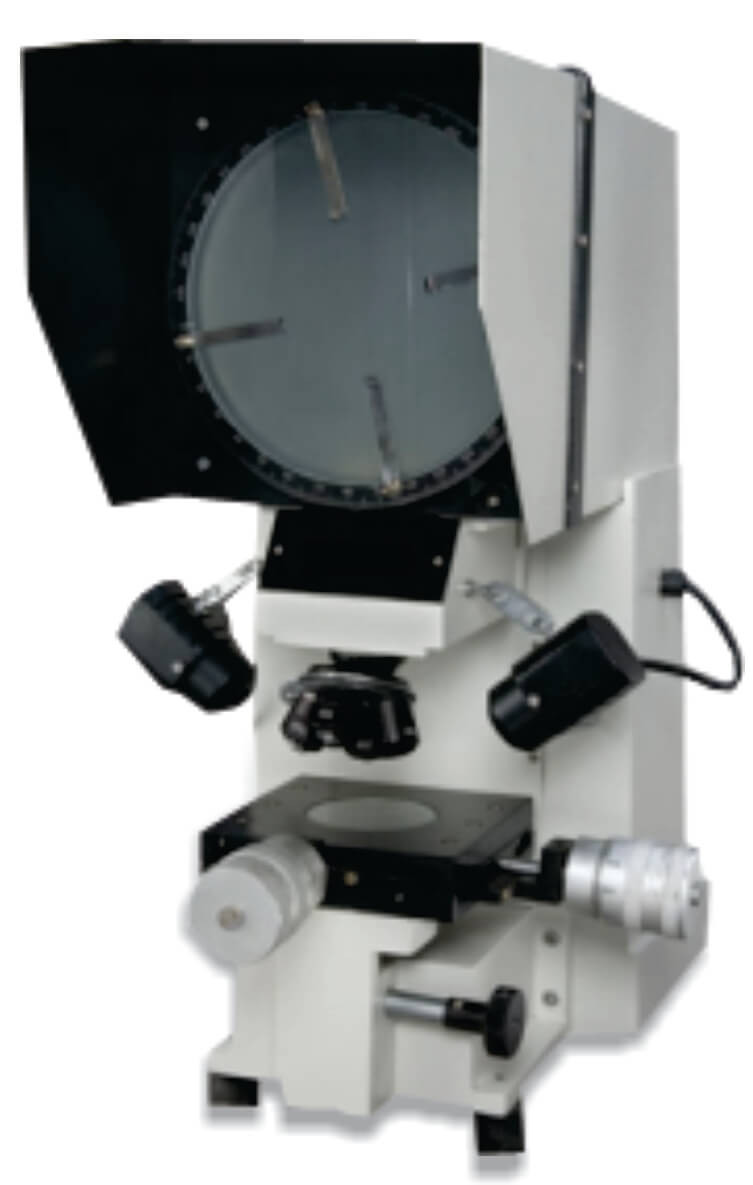

Model No. WPP-2100    Make:WESWOX

Profile Projector  Economy Model : Having 200mm dia 360 degree

rotatable graduated screen with 90 degree cross hair line for angle

measurement, With X-Y movement on ball bearing slides travel

upto 25 X 25 mm with Micrometer heads (50mm dia) least count

of 0.01mm for X-Y measurement, Having both contour (12V/100W)

lamp and two surface (12v/35W)lamps, Providing with four standard

magnifications in card board box: Travel X-Y movement : (Standard)  : 25x25mm,  Maximum size of object view : 18mm (dia),Maximum Height of Object view : 20 mm (Under 10x magnification),  Maximum Height of Object view:50mm (Under 20x,50x &100x), Micrometers (50mm Dia) : 25mm (L.C 0.01mm), X-Y Bed Size : 150mm150mm,  Standard Magnification : 10x, 20x ,50x and 100x
