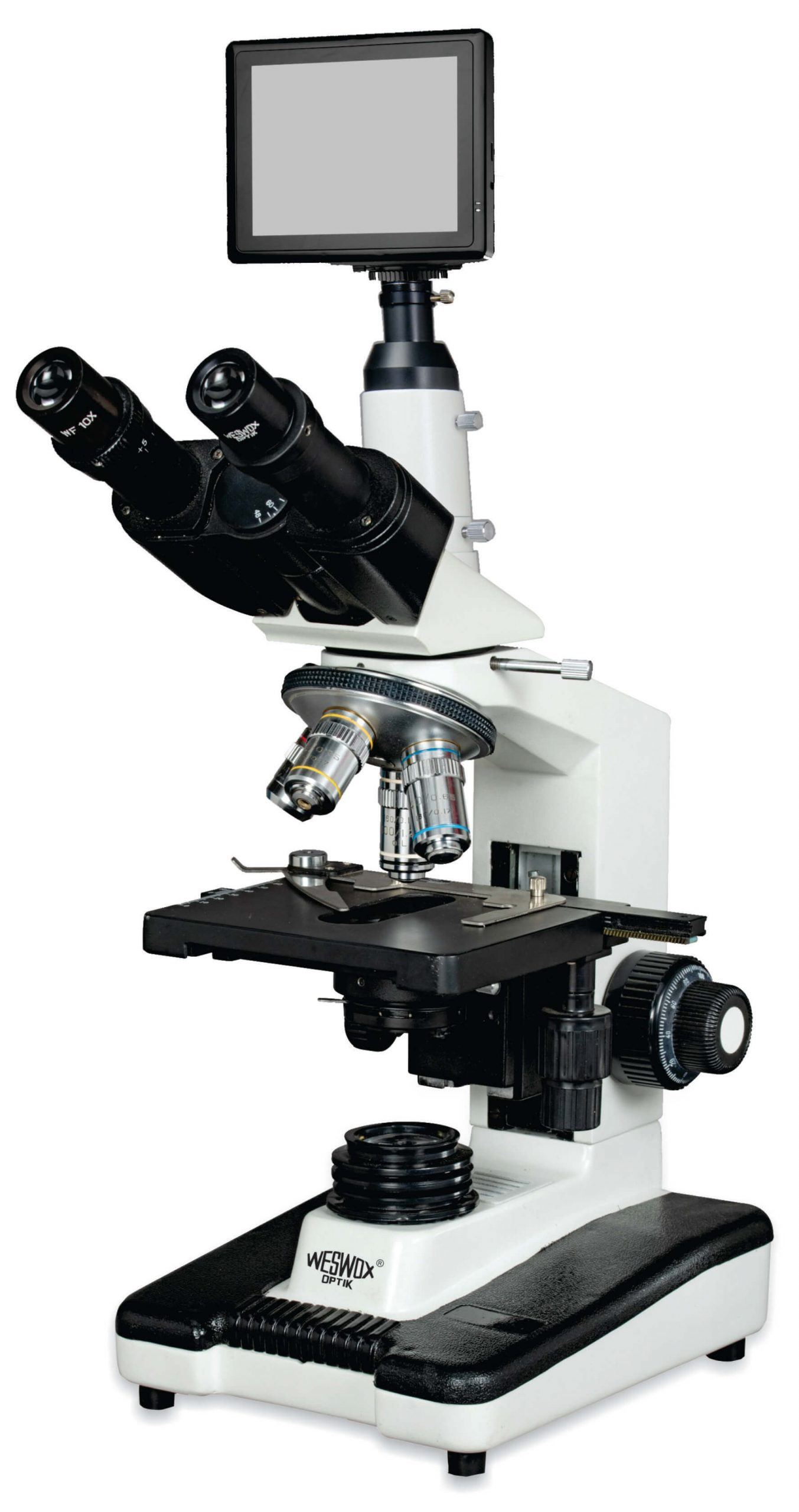

Model No. – BXL LCD Make – WESWOX

Easy Observation, Intelligent Operation” In conjunction with its excellent cost-performance ratio, the  BXL LCD uses 8 inch LCD display and 5MP camera which is excellent for advance bright field applications. We are manufacturer of Digital LCD USB Microscopes.


  • Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability.
  • Observation Head: Siedentopf BINOCULAR observation head inclined at 30orotatable at 360o. Phototube for photomicrography. Interpupillary distance adjustable between 48-75mm. Diopter adjustment ring on ocular provides correction for eye acuity.
  • Camera and LCD display: 8 inch LCD screen. Built-in digital camera with RCA, S-Video & USB-2 output with 5MP Resolution. Internal media card reader/writer.
  • Eyepiece: Wide Field Eyepiece 10x (PAIRED) FOV 18mm.
  • Nosepiece: Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece.
  • Objectives(infinity corrected:
  • Plan Achromatic 4X
  • Plan Achromatic 10X
  • Plan Achromatic 40X(SL)
  • Plan Achromatic 100X Oil (SL).
  • Stage: Size 125x135mm, supported on ball bearing guide ways and having low positioned co-axial controls for stage movement.
  • Focusing: Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm.
  • Condenser: Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Flip type front lens condenser.
  • Illumination: Incorporates 6V/20W halogen lamp with adjustable iris diaphragm.

Packaging contents:

Blue & Grey filters

STYRO FOAM Molded pack.

Warranty Information

2 Years parts.

1 year Electronics.
