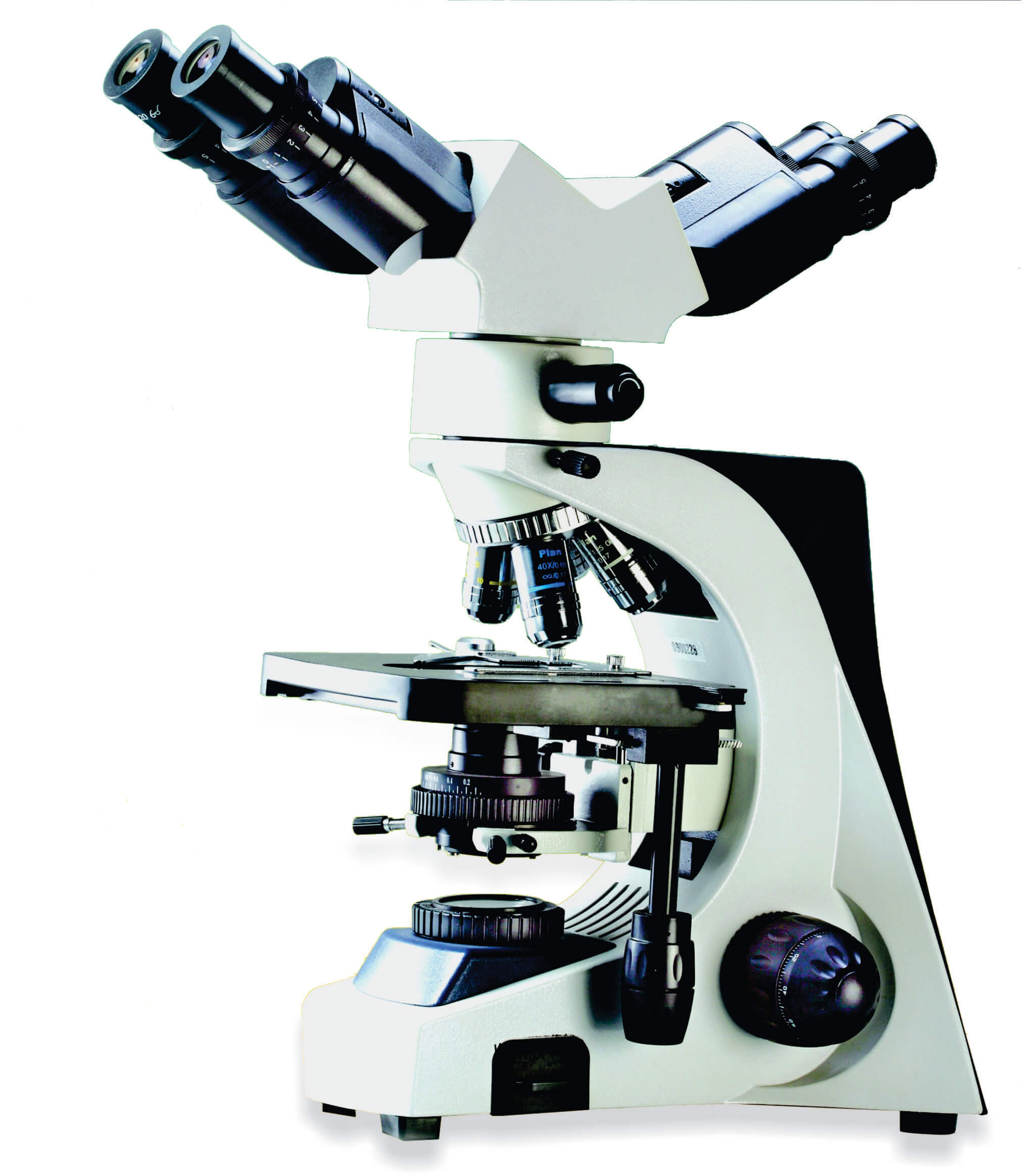

|Model No. – Dual Head||Make – WESWOX|
- Mechanical body: Single mould sturdy stand with anti rust materials. Extended base for better quality
- Viewing Head: Dual viewing compensation free binocular head. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity.
- Indicator : LED curser pointer
- Eyepiece : Extra wide field eyepiece 10x (PAIRED) FOV 18mm.
- Nosepiece: Reverse angle quadruple nose piece resolves on ball bearing with positive indexing. Soft rubber knurled grip on nose piece.
- Objective : CCIS Din Plan Achromatic 4x
CCIS Din Plan Achromatic 10x
CCIS Din Plan Achromatic 40x
CCIS Din Plan Achromatic 100x
- Mechanical Stage: Double layers mechanical stage size 180x150mm, supported on ball bearing guide ways and heaving low positioned co-axial control for stage movement. Cross movement 70mm x 50mm.
- Condenser : Sub stage Abbe condenser NA 1.25 having a spherical lens adjustable iris diaphragm and swing out filter holder.
- Focusing : Co-axial focusing control with ball bearing guide ways and large knob, per focusing lever & tension adjusting ring. The slow motion has 1DIV=0.002mm.
- Illumination : Incorporates 6V/20W halogen lamp with adjustable diaphragm, power supply input form 220V/110V AC .kolher’s illumination.
Standard accessories : Blue filter, dust cover, operating manual, STYRO FOAM molded pack.
