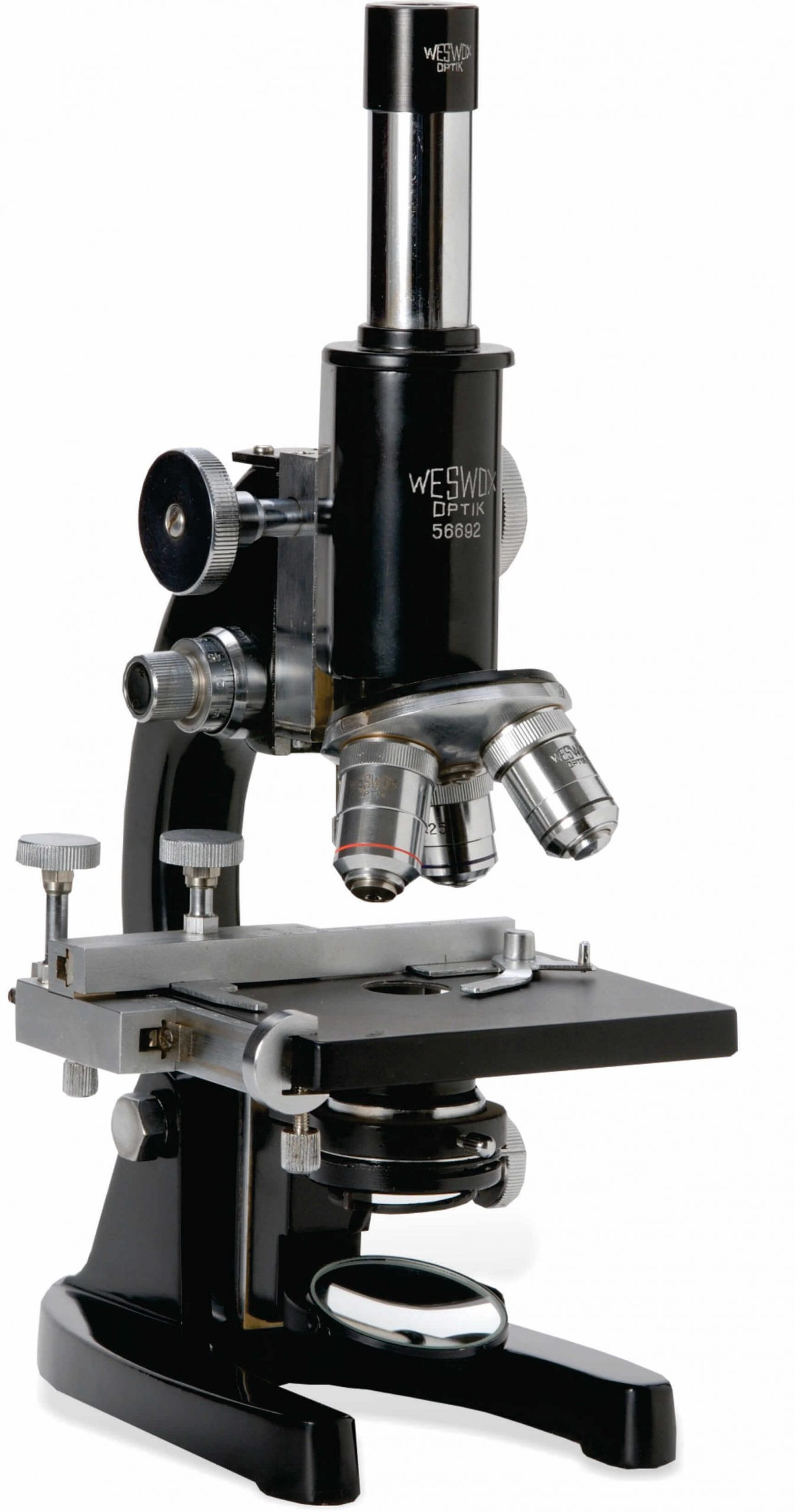

|Model No. – HL-4||Make – WESWOX|
Supplied with LED illumination wth battery back up
- Brass metal construction, Long life use
- Warranty: 2 Years.
- Brass Mechanical stage
- Monocular body with horse shoe shaped base hinged type, versatile designed inclinable through 90o Aluminium Die-Cast parts.
- Mechanical tube length 160 + 1 mm.
- Triple revolving nosepiece with positive centring and click stop.
- Coarse motion through rack and pinion. accurate graduated fine motion reading to .002 mm.
- Fixed square stage120mm x120mm fitted with detachable brass graduated mechanical stage for X and Y movement upto 40mm to 75mm.
- Two lens Abbe condenser NA 1.25 with iris diaphragm and swing out filter holder with blue filter, moveable through rack and pinion.
- A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
- Safety stopper, prevents damage to slide and objectives.
- Black stoving finish and hard instrumental chromium finish.
- Complete with optics, these microscopes are packed in shockproof Styrofoam molded box inside die cut cardboard boxes with top handle having provision for placing eyepieces, objectives and dust cover.
- All knobs Slides, motics, objectives are made up of brass material for long life
- Warranty : 2 Years
- Certification: ISO, CE
Eyepieces : WF 10x & H15x.
Achromatic Objectives : antifungus, anti-reflection coated, parafocal objectives 10x,
40x/45x(SL) & 100x Oil Imm.(SL)
Magnification Range : 40x – 1500x
ALL KEOWA OPTICS BEARS THREE YEARS WARRANTY.
