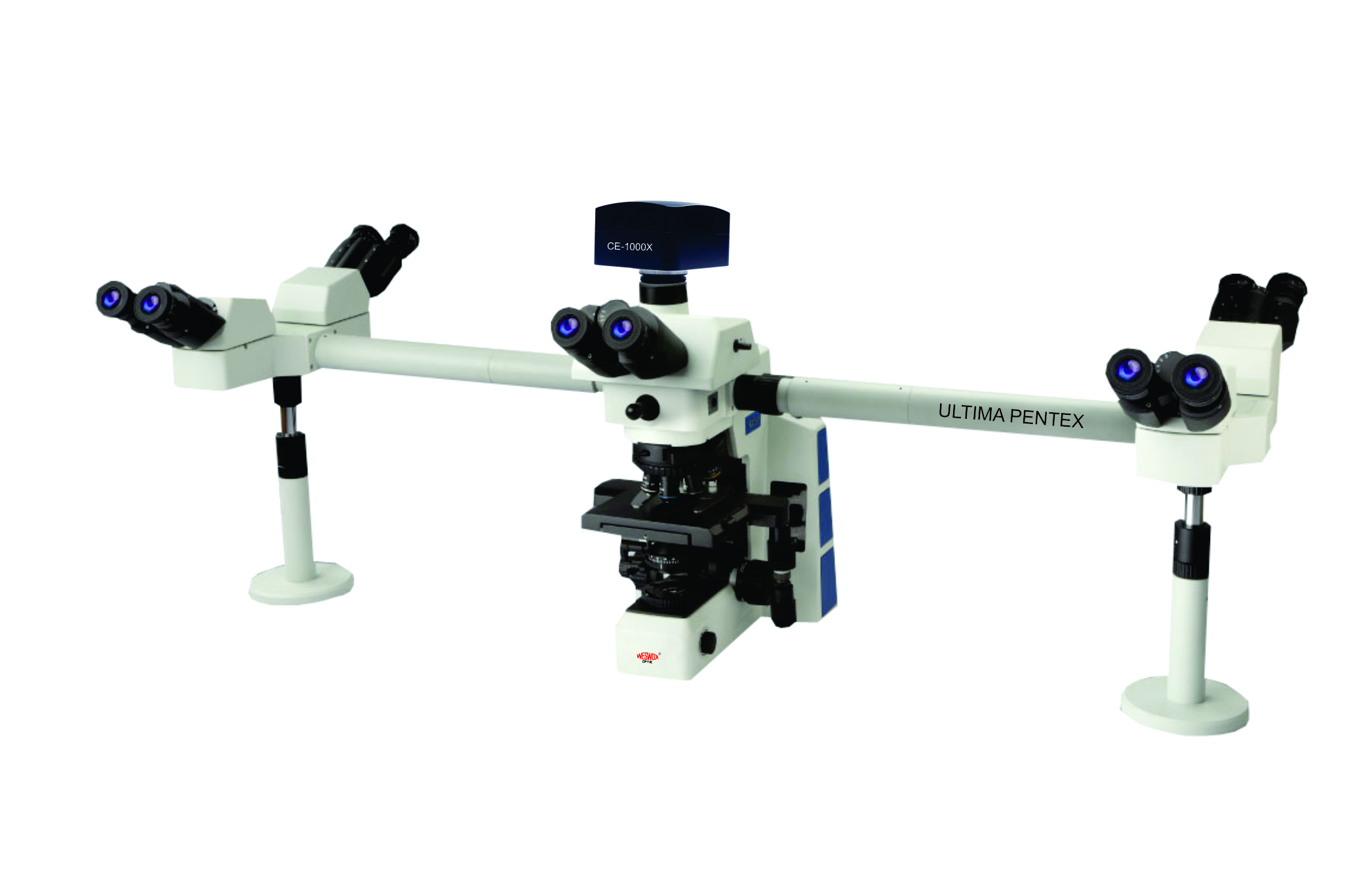

PENTA HEAD MICROSCOPE

TRINOCULAR OBSERVATION HEAD

Sidentopf observation head inclined at 30deg rotatable at 360deg.

Binocular observation head inclined at 30 fized on adjustable stands(four set)

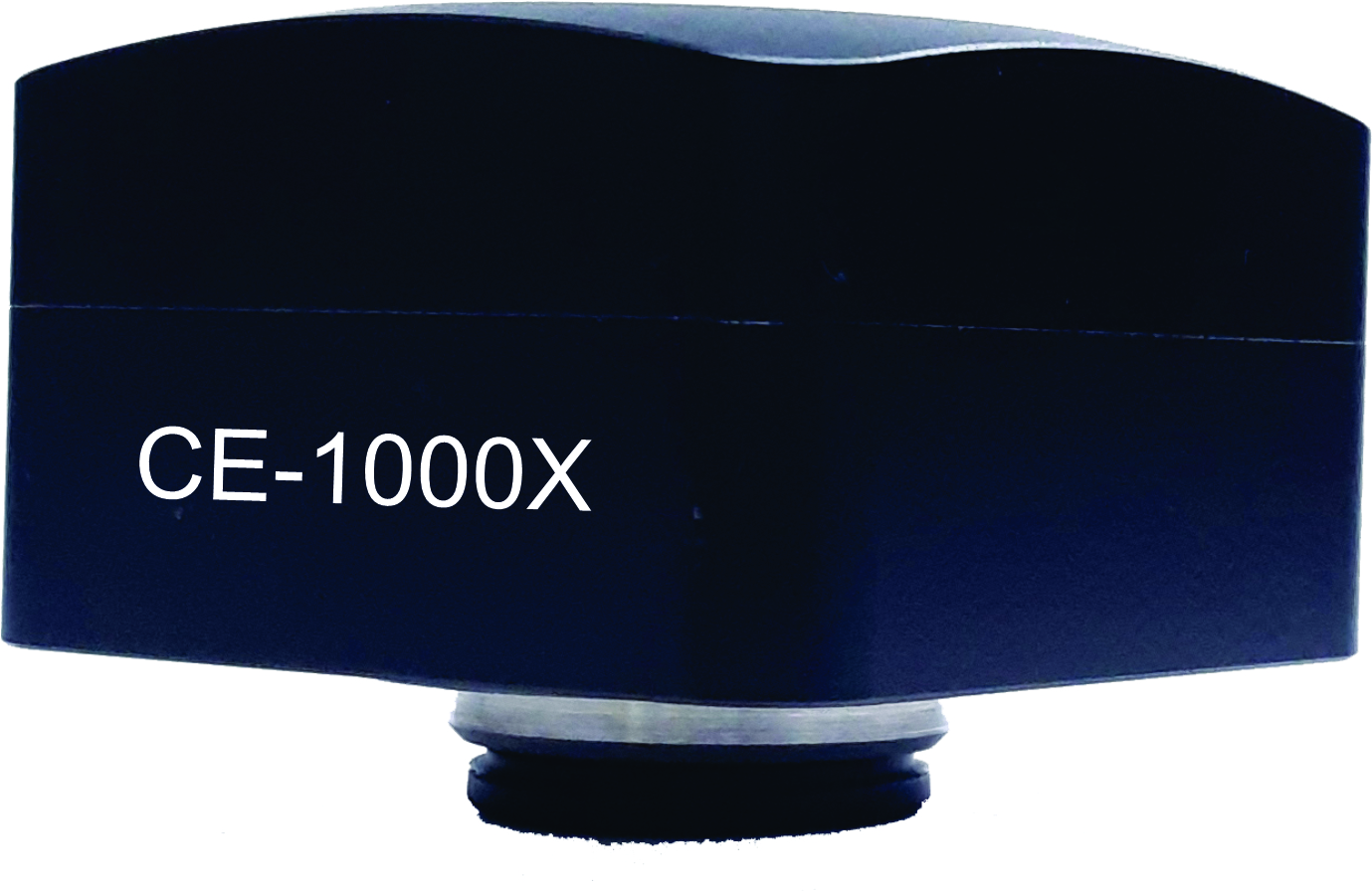

Vertical focusable phototube for micro photography.

Diopter adjustment ring on both ocular (+5)

Interpupillary distance from 47mm to 78mm.

EYEPIECE (ANTI FUNGAL TREATED)

Super wide field 10x(paired) F.N. 22mm/25mm

Ocular dia 30mm

OBJECTIVE (Anti mold  & anti fungal trated)

Infinity plan objective 2x

Infinity color corrected plan achromatic 4x (NA 0.1 WD 30mm)

Infinity color corrected plan achromatic 10x (NA 0.25WD 20.1mm)

Infinity color corrected plan achromatic 20x (NA 0.4 WD 6.4mm)

Infinity color corrected plan achromatic 40x (SL) (NA 0.65WD 0.7mm)

Infinity color corrected plan achromatic 100x oil (SL) (NA 1.25WD 0.2mm)

MECHANICAL BODY

Co-Axial focusing control with large knob, PRE-FOCUSING LEVER & TENSION adjustment ring.

Led pointer with R/G/B.

3 step focus function drive coarse, medium & fine focusing, focus torque adjustment and adjustable focus stop, with focus knobs coarse.

Reverse angle septuple nosepiece with slot for Polarizer & DIC attachments.

Detachasble rotatable new sapphire crystal ultra hard-wearing stage.

Mechanical stage size 190mm x 152mm & having low positioned co-axial control on ball bearing guide ways with capacity to hold to glass slides at a time.

Fine div 0.001mm, coarse stroke 35mm per rotation, Moving range 78mm x 54mm.

Built-in base filter (NCB 11, ND-2, ND-8, ND-32)

Upper limit stopper.

SUB STAGE CONDENSER

Swing out front lens, abbe condenser NA 0.9/1.25, filter holder and iris diaphragm.

ILLUMINATION SYSTEM

Koehler’s illumination system with 12V-100W haloge external illuminator.

Aspherical collecter. Brightness control Knob. Optional 3W LED available.

STANDARD ACCESSORIES

12V-100W Halogen tungsten bulb, dust cover, blue filter, guarantee card operating manual and molded pack.
