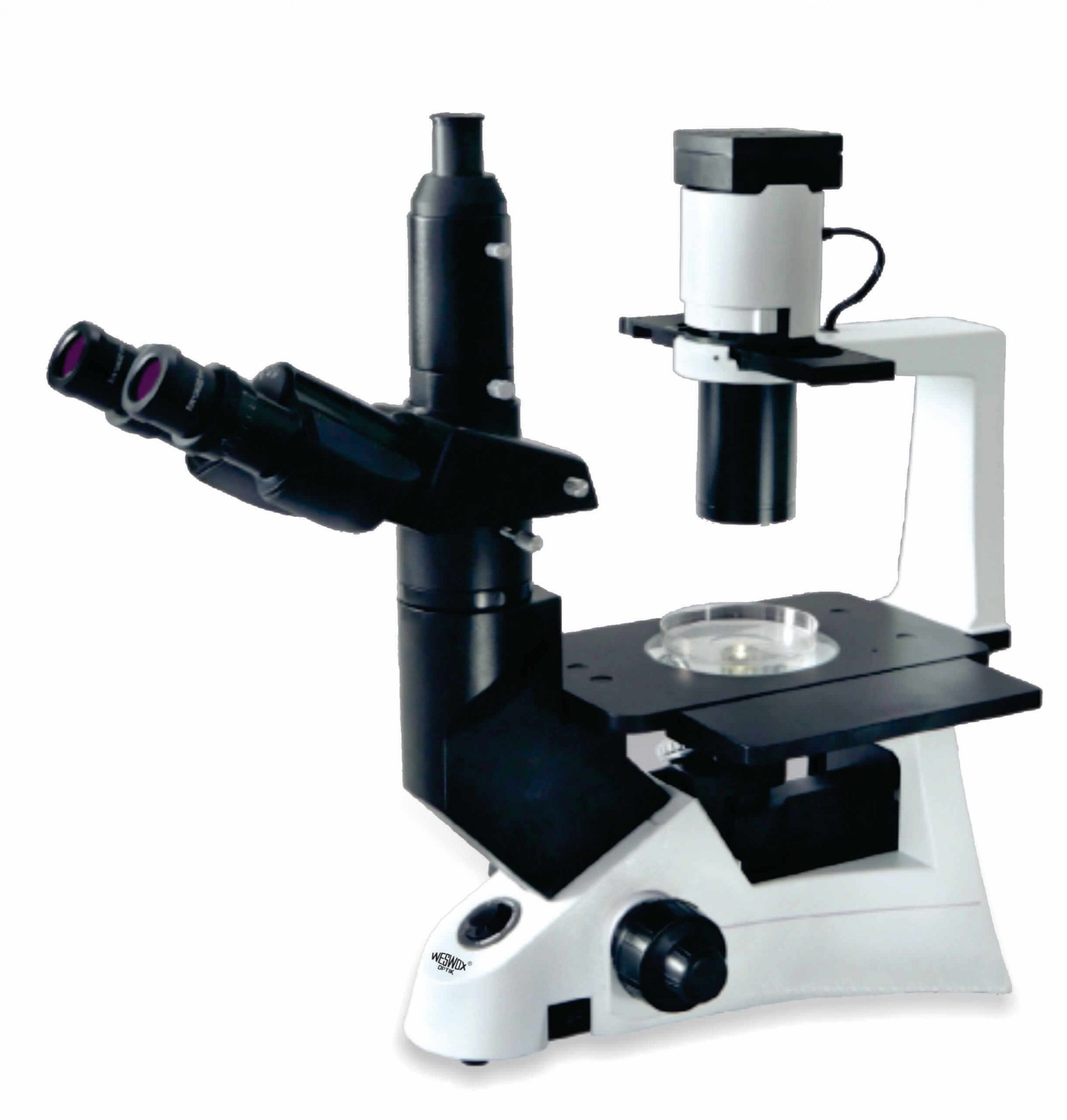

|Model No. – WTC-6200||Make – WESWOX|
Long working distance optics
Plan infinity optics
Field of View (FOV) 22mm with 10x eyepieces
Pre-centered phase annulus
4x,40x Plan infinity objectives & 10x,20x Plan infinity Phase objectives as standard
- Viewing Head: Trinocular Head inclined at 30°. Interpupillary distance 48mm-75mm.
- Eyepiece: High point extra wide field eyepiece EW10x/22
- Objective: LWD plan infinity objective 4x/0.1WD 18mm, 40x/0.6WD 2.6mm(cover glass 1.2mm)
- LWD plan infinity Phase objective. PH10x/0.25WD10mm, PH20x/0.4WD5.1mm.
- Nosepiece: Quadruple nosepiece.
- Condenser: ELWD condenser NA 0.3, LWD 72mm(without condenser 150mm)
- Phase Annulus: 10x-20x Phase annulus plate.
- Stage: Plane stag 160mmx250mm, glass insert, auxillary stage 70x180mm.
- Focusing: coaxial coarse and fine adjustment. Coaxial stroke37.7mm per rotation. Fine stroke -0.2mm per rotation.
- Illumination: Halogen Lamp 6V30V
Filter: Blue, green and frosted glass 45mm dia.
