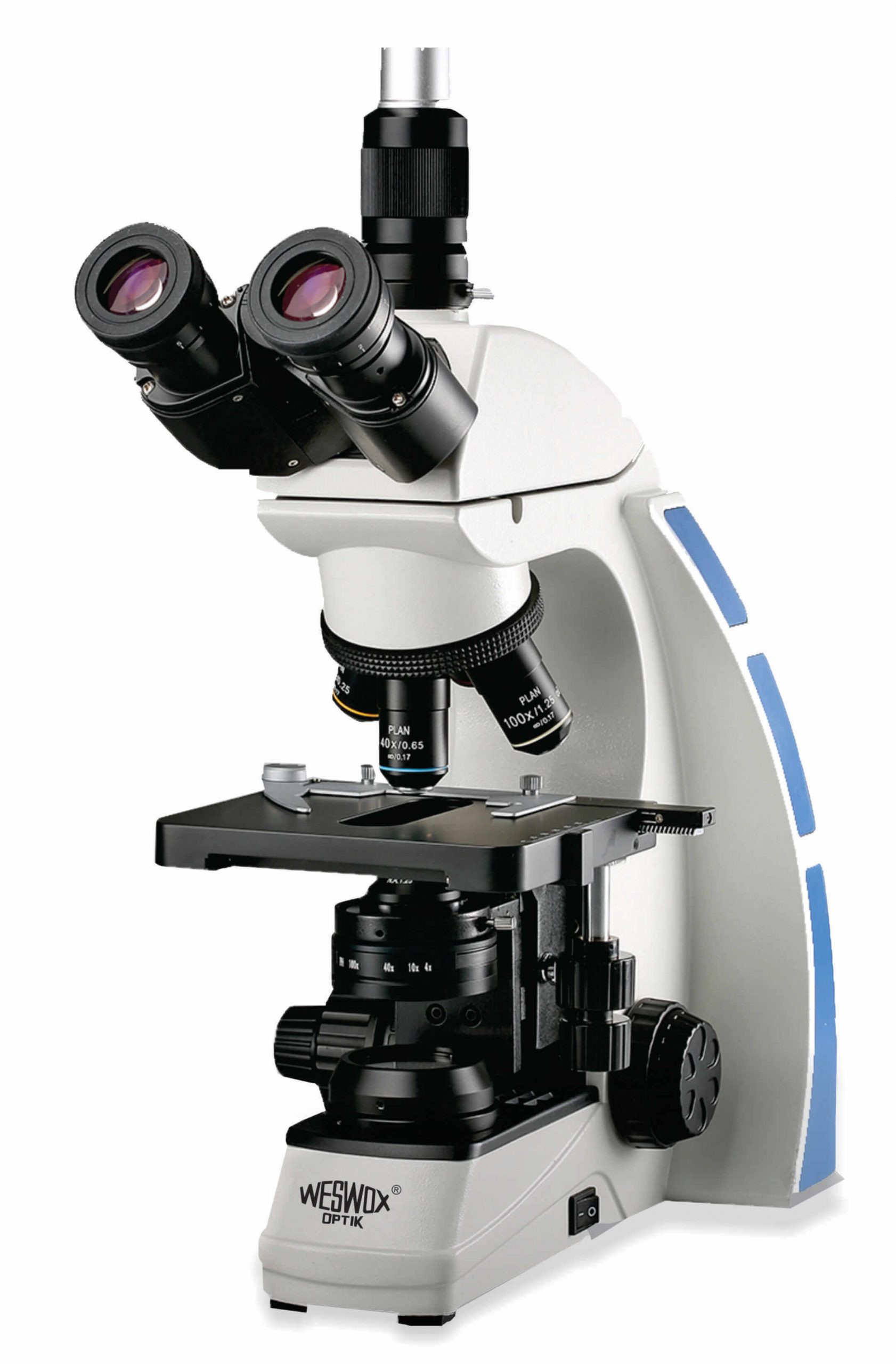

TRINOCULAR RESEARCH MICROSCOPE

Enquire Now

STAND : Single mold sturdy stand with anti rust materials. Extended base for better stability.
OPTICAL SYSTEM : Infinity corrected optical system.
OBSERVATION HEAD : Siedentopf Trinocular 30o inclined, 360o rotatable. Interpupillary distance adjustable between 55-75mm. Camera attachment. Diopter adjustment ring on ocular provides correction for eye acuity.
EYEPIECE : EWF Eyepiece 10x (PAIRED) FOV 22mm with diopter adjustment, interpupillary distance and eyepoint height adjustment.
NOSEPIECE : Reverse angle quadruple nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece.
OBJECTIVES (Infinity Plan Objectives): Anti fungus achromatic aberration-free infinity corrected (plan achromat) objectives.
• Infinity Plan achromatic 4x
• Infinity Plan achromatic 10x
• Infinity Plan achromatic 40x (SL)
• Infinity Plan achromatic 100x (SL) oil
STAGE : Rackless Ceramic coated Mechanical stage Size 140mmx132mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. Cross movement 52mmX 76mm. Stage focus with coaxial coarse and fine adjustment knobs on either side, with a minimum reading of 2 μm, torque adjustment ring and vertical stopper and vernier calibration.
FOCUSING : Co-axial focusing control with ball bearing guide ways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm.
CONDENSER : Abbe or achromat condenser, fully adjustable (vertical and centering) Sub stage abbe condenser NA 1. 25 having a spherical lens, adjustable iris diaphragm and swing out filter holder. Field diaphragm in the condenser unit to prevent out of FOV light.
ILLUMINATION : Incorporates 3W white LED (with blue light blocking filter) lamp with adjustable iris diaphragm. Automatic light intensity adjustment when changing objective lens. Fly’s eye array lens for uniform illumination of entire field of view (FOV).
OPTIONAL ACCESSORIES : Provision for phase contrast, fluorescence and dark field.
POWER : 220-240v 50Hz, Single Phase.
WARRANTY : 2 year warranty. Extended warranty can be provided on request.
