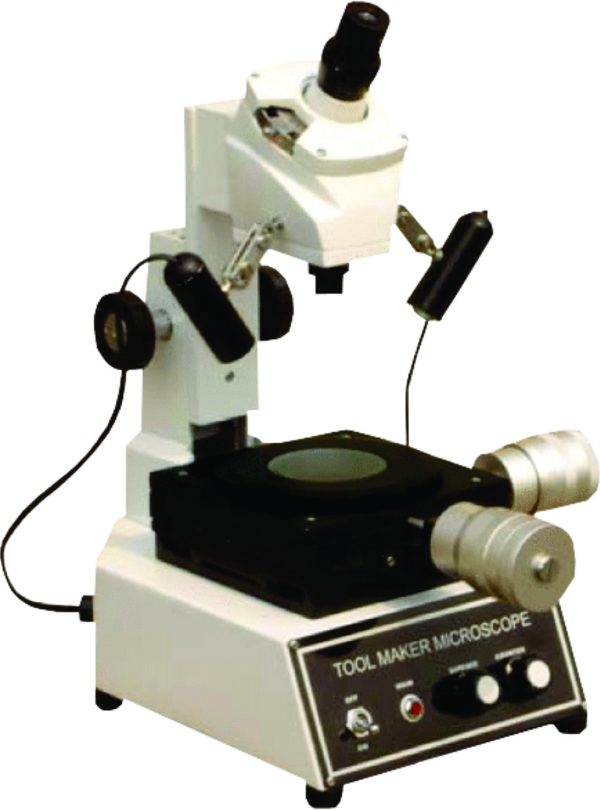

TOOL MAKER MICROSCOPE

Optical tube: Monocular type (Vertical tilt angle: 60°).
Observation image: Erect.
Eyepiece protractor: Resolution (graduation): 1°, Rotation angle: 360°, Resolution (angle): 6′, Adjustable zero point.
Eyepiece: 10X, 15X, and 20X.
With X-Y movement on ball bearing slides with 25mm graduated Micrometers (50mm dia) L.C. 0.01mm with 360°
goniometer & venire of 1 min.
Usable area of the stage glass: 3.8″ x 3.8″/96×96mm.
Maximum stage glass loading :11 lbs./5kg.
Objective lens: Standard accessory: 2X, 5X, 10X and 20X.
Microscope head, (Maximum height of workpiece): 4.53″ /115m.
Table size: 6″ x 6″ / 52×152mm.
Having both contour (12V/100W) lamp and two surface (6V/20W) lamps having both transmitted and incident light in
wooden box.
Power : 220-240v AC 50/60Hz.
Linear measurement method: Micrometer heads included.
Resolution: .00005″/1 μm.
Focusing method: Manual (Coarse feed).
Transmitted illumination: Staples brightness adjustment, White LED light source, With green filter.
Surface illumination Oblique single-source type, Staples brightness adjustment, White LED light source.
Measuring range: 2″ x 2″ / 50×50mm.
Micrometer head travel range: 2″/50mm.
Main unit mass: 31 lbs. / 14kg
Fixed magnification 30x having 15x WF eyepiece with 90° cross hair line for angle measurement, 150 X150mm 360°
ROTARY bed.
