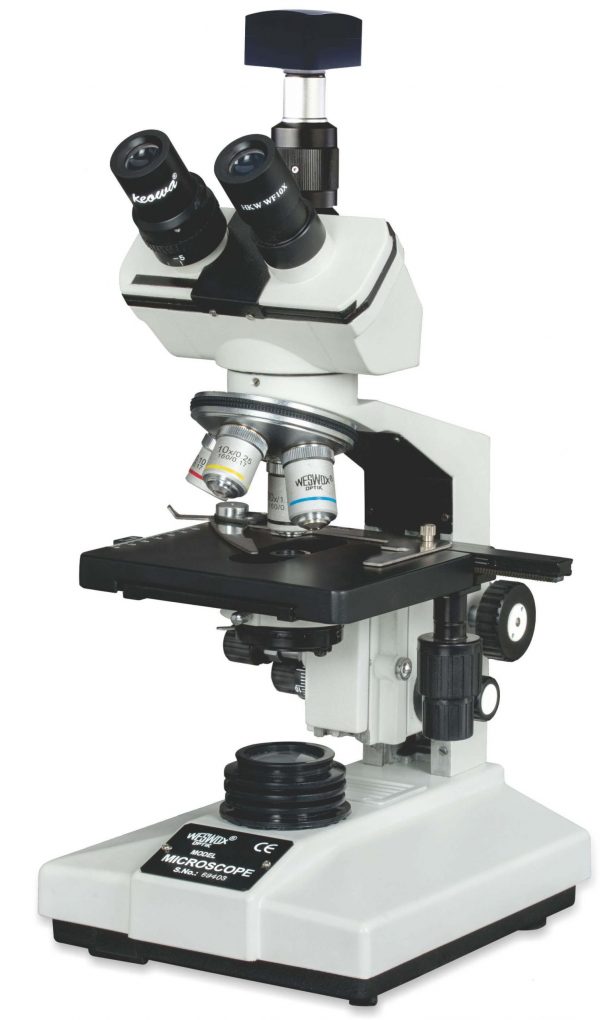

BINOCULAR MICROSCOPEWITH LED LIGHT SOURCE

Enquire Now

(with built-in light arrangement)

Model No. – HL-66 Make – WESWOX

Technical Specifications:-

Stand –Rigid & Heavy single mold aluminum die-cast stand.

Observation Head- Binocular head inclined at 45o and rotatable in 360o.

Eyepiece -10x WF (paired) anti-fungal eyepiece. H6x (paired) extra.

Nosepiece – Quadruple ball bearing revolving nose piece

Objectives- 4x/0.10, 10x/NA 0.25, 40x/NA 0.65(SL) & 100x/NA 1.25(SL) Oil imm.

Stage – Size 120x140mm with co-axial controls for X & Y movement.

Focusing – Separate coarse and fine knobs reading up to 0.002mm.

Condenser- NA 1.25 fitted with iris diaphragm and blue filter holder.

Illumination- LED 3V with variable intensity control.

Power- AC input 100V-240V, 50/60 Hz ISO 9001, CE approved.

Packaging Contents- Styrofoam molded, Nylon Dust cover,
