ADVANCE STUDENT MICROSCOPE

HL- SERIES IDEAL FOR THE CLASSROOM

robust, reliable metal construction and excellent optical performance.

Extremely simple to use, this instrument is ideal for the examination of everyday objects in fascinating yet understandable detail. Highly recommended for Primary Science Education and Field Study Centres.

Black stoving finish and hard instrumental chromium plating will accent any classroom environment.

Enquire Now

Category: Student Microscope

Description
Reviews (0)

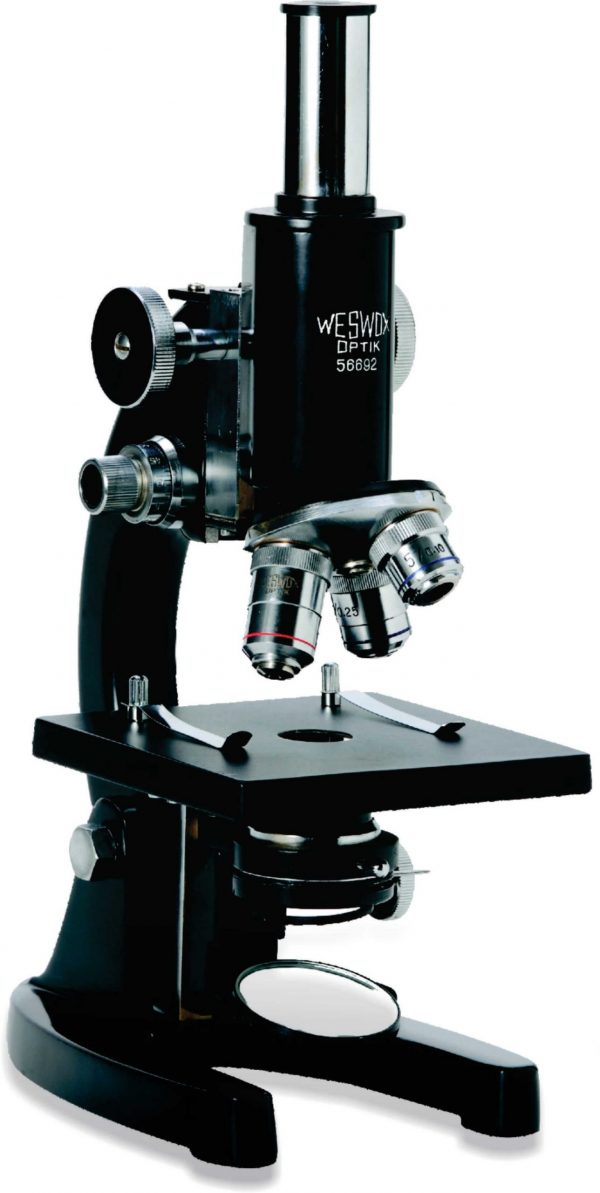

ADVANCE STUDENT MICROSCOPE

MAKE: WESWOX

MODEL: HL-99

With three Achromatic Objectives

TECHNICAL SPECIFICATIONS:

BODY

MONOCULAR body with horse shoe shaped base hinged type, versatile designed inclinable to 90^o assembled from DIE-CAST parts.

VIEWING TUBE

MECHANICAL tube of length 160+1mm.

EYEPIECE

H10x & H15x.

NOSEPIECE

TRIPLE revolving nosepiece with positive centering and click stop.

OBJECTIVES

5x, 10x & 40/45x (SL).

STAGE

FIXED square stage of size 120mm X 120mm with Phosphorus stage clips.

FOCUSING

RACK AND PINION knob provided for sensitive focusing.

KNOBS

SEPARATE coarse and fine motion knobs with very precise & accurate graduated fine motion reading to 0.002mm, for fine adjustment and a stopper to prevent damage to glass microslides and objective lenses.

CONDENSER

TWO LENS ABBE condenser NA 1.25 with rack & pinion movement and swing-out filter holder.

ILLUMINATION

STANDARD plano concave mirror 50 mm dia. in fork for natural light.

MAGNIFICATION

100x-675x.

PACKAGING CONTENTS

Packed in shockproof Styrofoam molded box having provision for placing eyepieces and objectives and dust cover.
