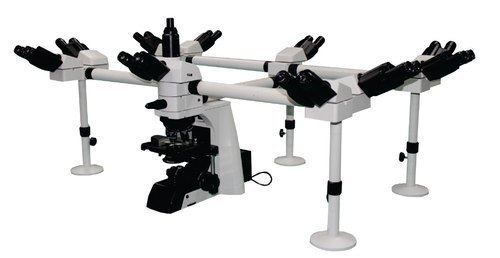

DECA  HEAD   MICROSCOPE

Enquire Now

MODEL NO. ULTIMA DECA  MAKE: WESWOX

TECHNICAL SPECIFICATIONS

Mechanical Body: Single mold sturdy stand with anti rust materials. Extended base for better stability.

Trinocular Head: Sidentopf trinocular observation head inclined at 30° rotatable at 360° (One set). Vertical focusable phototube for photomicrography.

Binocular Head: Binocular observation heads, inclined at 30° rotatable at 360° (Nine set). Diopter adjustment ring on ocular tube (±5). Interpupillary distance from 47mm to 78mm. (Optional tilting observation head angle 5°-35°.

Pointer: Dual LED pointer focusable with light intensity control and choise of either Red or Green.

Eyepiece: Extra wide field 10x (Paired) FOV 25mm Ocular dia 30mm.

Nosepiece: Reverse angle sextuple nospiece with slot for polarizer.

Objective: Infinite corrected anti fungal & anti mold.

Infinity CCIS Color Corrected Achromatic 2x

Infinity CCIS Color Corrected Achromatic 4x

Infinity CCIS Color Corrected Achromatic 10x

Infinity CCIS Color Corrected Achromatic 20x

Infinity CCIS Color Corrected Achromatic 40x (SL)

Infinity CCIS Color Corrected Achromatic 100x Oil (SL)

Mechanical Stage: Mechanicak stage size 187x167mm and heaving low positioned co-axial controls on ball bearing guide ways with capacity to hold two glass slide at time.

Focusing: co-axial focusing control with large knob, pre focusing leaver and tension adjustment ring. Fine Div 0.001mm, Coarse stroke 35mm per rotation, fine stroke 0.1mm/rotation. Moving range 78mm x 54mm per rotation. Upper limit stoper is provided.

Condenser: sub stage swing out front lens, Abbe condenser N.A 0.9/1.25, Filter holderand iris diaphragm.

Illumination: Kohler illumination system with 12V-100W Halogen external illuminator. Aspherical collector. Brightness control knob. Optional 3W LED Available.

Certification: ISO  and CE Marked.

Standard Accessories: 12V/100W halogen tungsten bulb, dust cover, blue filter, manual and packed in styrofoam box.

Warranty: Two Years and One Year on electronics.
